SEE THE SCALE

The corrected stepped building volumes

These views distinguish the lower eastern edge from the taller main roof behind it. They are indicative visualisations, not surveyed photomontages.

WHAT IS FIXED

Based on the applicant's dimensions

The visualisations use the photographed viewpoints, the existing 2 metre boundary, the 3.1 metre eastern setback and the stepped levels marked on drawing A20.

Important: These are explanatory mockups. They are not survey work and should not be used to claim an exact line of sight, shadow position or finished appearance.
Roof direction: Drawing A20 shows about 6.4 metres to the eastern eave, about 6.8 to 7.3 metres at the lower eastern roof, about 10.1 metres at the eastern side of the main roof, and about 12.1 metres at its western high point.
Check drawings A20 and A07

THREE VIEWPOINTS

See the change from nearby homes and the street

Use the buttons to stop the animation on either view.

STREET CORNER

Looking north along Adriatic Lane

This angle shows the lower eastern volume close to Adriatic Lane and the taller main volume set west behind it. Both begin at natural ground, not on top of the boundary infills.

Share this view
Current view from the southern street corner after distant vehicles were digitally removedIndicative corner view showing the proposed building beside Adriatic LaneCURRENT VIEWINDICATIVE PROPOSAL
Indicative visualisation. Not a survey.
Applicant plan showing the proposed building and Adriatic Lane

WHERE THE CAMERA WAS

Camera at the southern end of Adriatic Lane, facing about 10 degrees west of north.

Blue shows the approximate camera position and field of view.

Indicative only. The position and viewing angle were estimated from the supplied photograph and marked camera plan.

Check applicant drawing A07

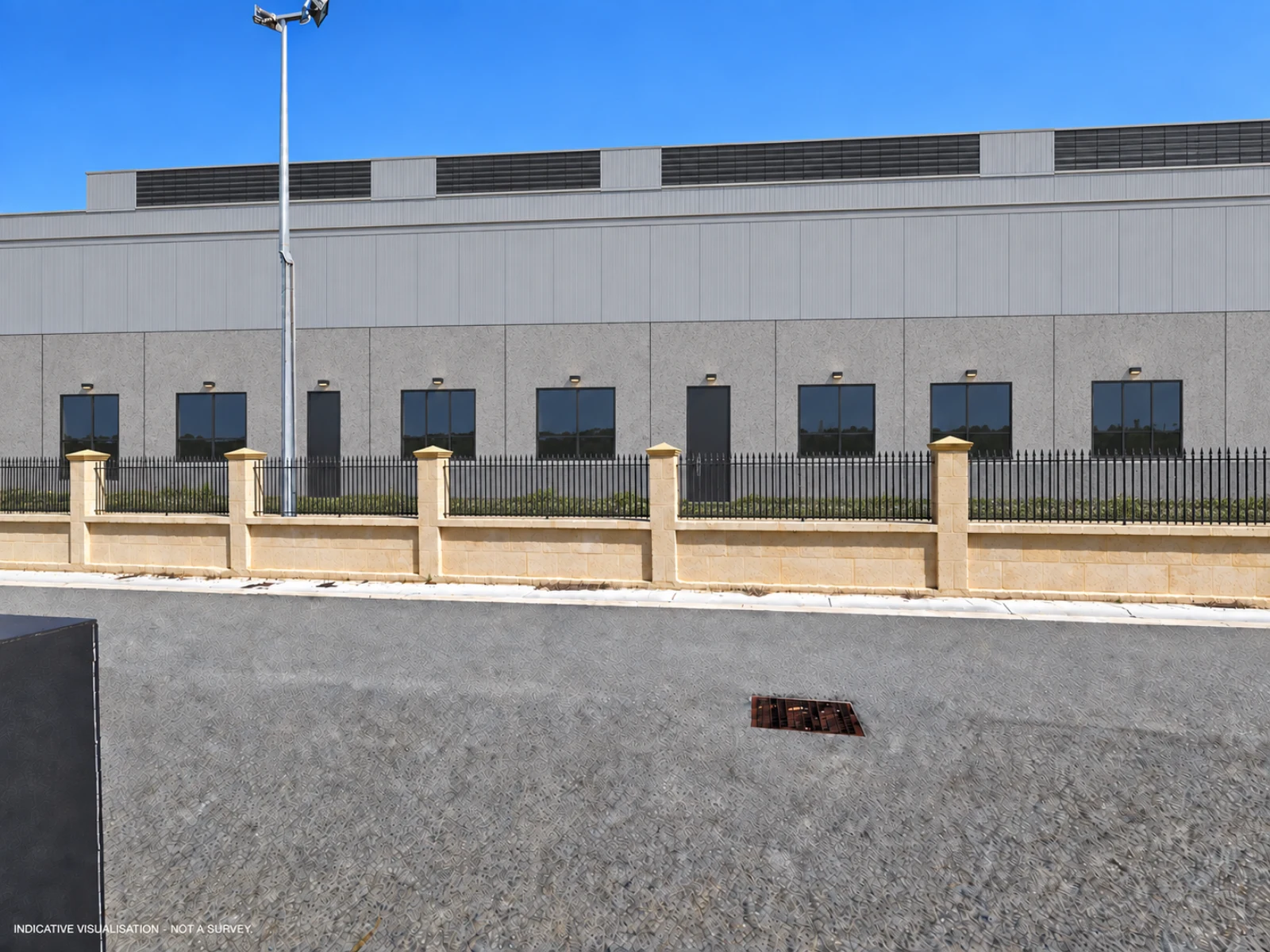

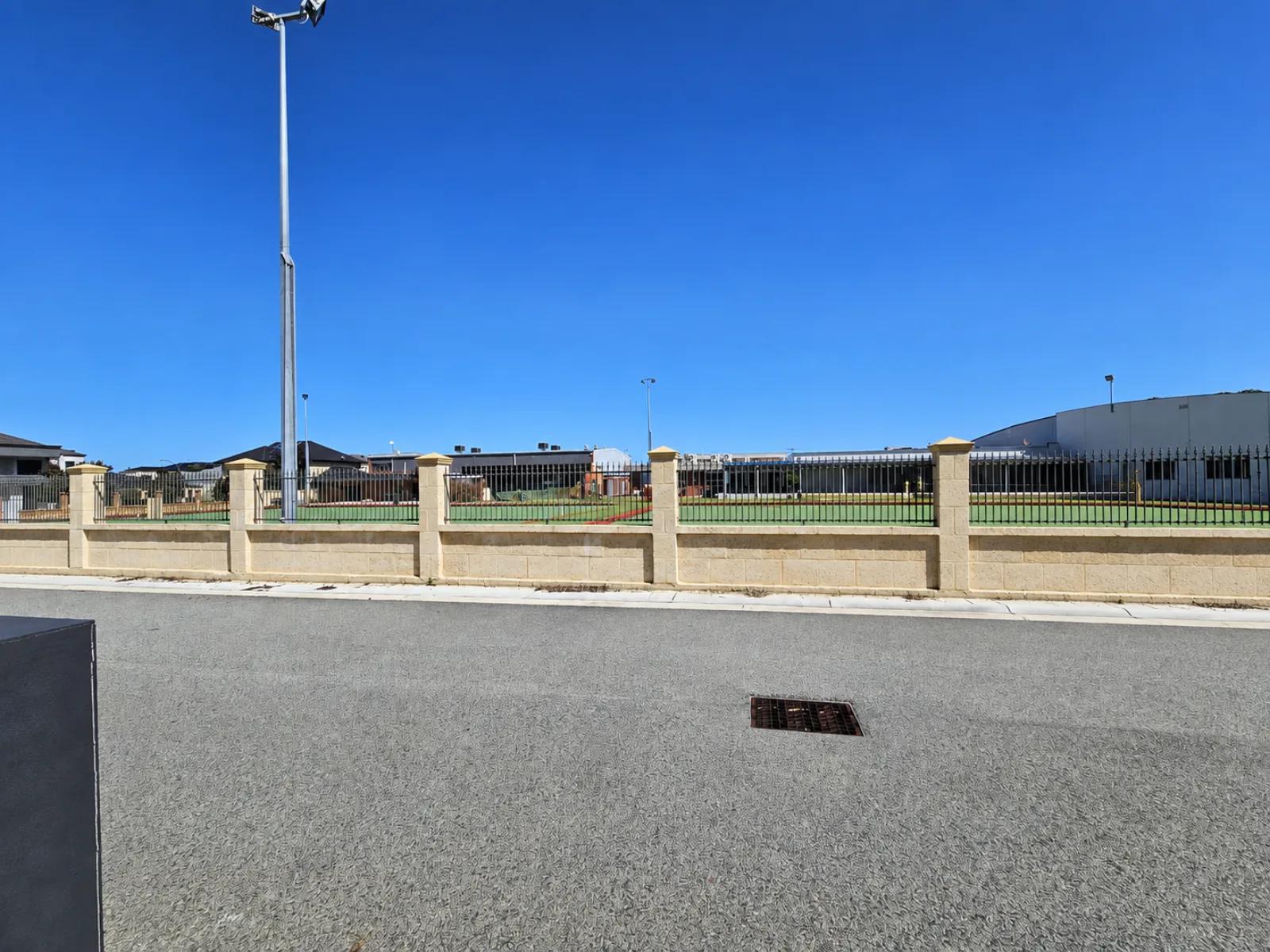

GROUND LEVEL

From the house opposite

The near eastern volume is about 6.4 metres to its eave and 6.8 to 7.3 metres to its roof. The main roof behind it rises from about 10.1 to 12.1 metres. The long facade continues beyond both sides of this photograph.

Share this view
Current ground-level view across Adriatic Lane after parked cars were digitally removedIndicative ground-level view with the proposed building added behind the existing boundaryCURRENT VIEWINDICATIVE PROPOSAL
Indicative visualisation. Not a survey.
Applicant plan showing the proposed building and Adriatic Lane

WHERE THE CAMERA WAS

Camera at the house opposite, facing west across Adriatic Lane.

Blue shows the approximate camera position and field of view.

Indicative only. The position and viewing angle were estimated from the supplied photograph and marked camera plan.

Check applicant drawing A07

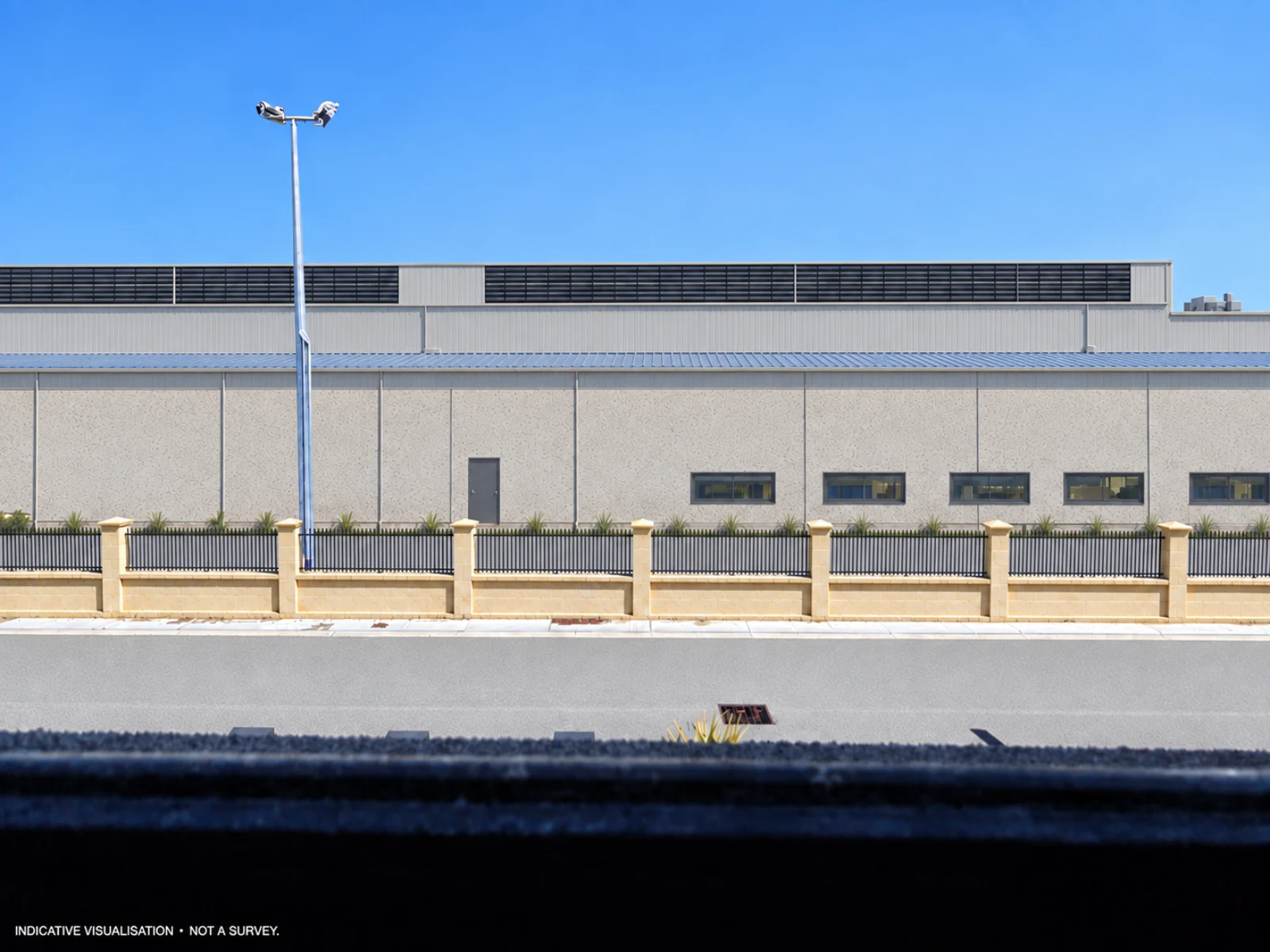

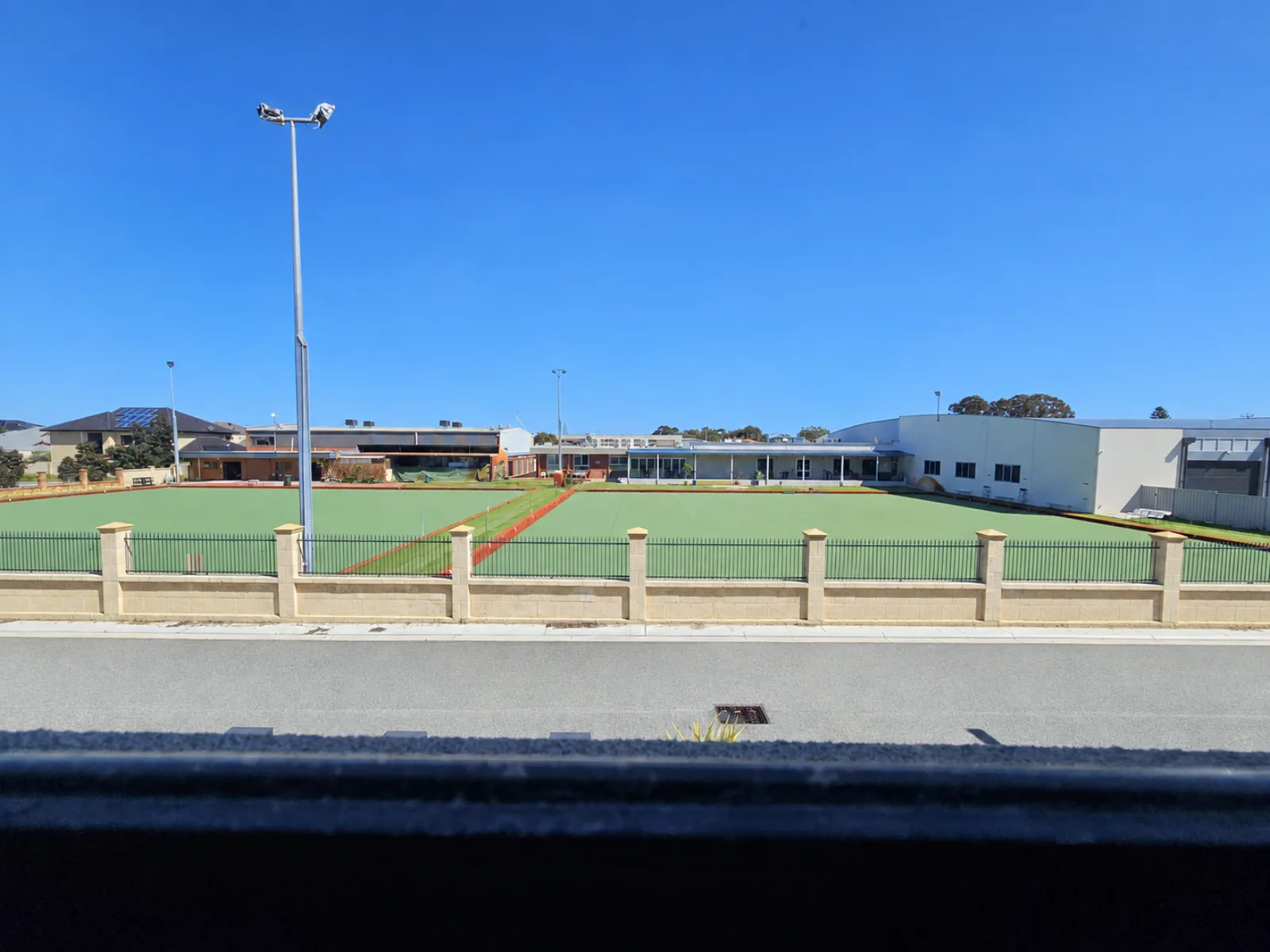

UPSTAIRS WINDOW

From about 3.83 metres above ground

This higher view shows more of the taller roof behind the lower eastern volume. The camera faces the long eastern wall, which continues beyond both sides of the photograph.

Share this view
Current upstairs view across Adriatic Lane after parked cars were digitally removedIndicative upstairs view with the proposed building added behind the existing boundaryCURRENT VIEWINDICATIVE PROPOSAL
Indicative visualisation. Not a survey.
Applicant plan showing the proposed building and Adriatic Lane

WHERE THE CAMERA WAS

Camera at the house opposite, facing west across Adriatic Lane.

Blue shows the approximate camera position and field of view.

Indicative only. The position and viewing angle were estimated from the supplied photograph and marked camera plan.

Check applicant drawing A07
Privacy edit: Parked vehicles were digitally removed from the current photographs before publication. The buildings, boundary, roads and camera viewpoints were retained.

CHECK THE APPLICANT'S DRAWINGS

Check the orientation and size for yourself

These are the two drawings used to set the building position, roof direction and marked heights in the mockups.

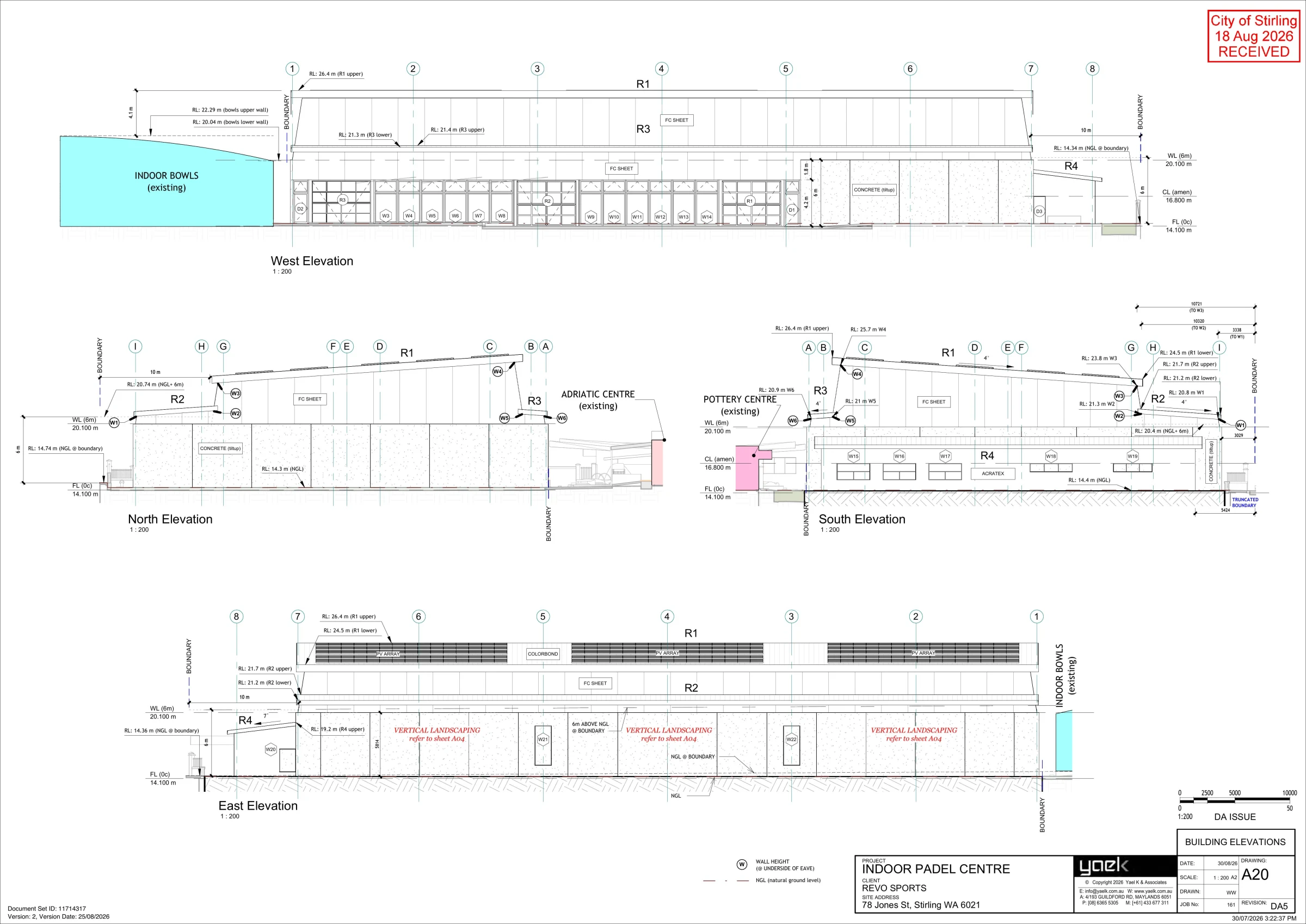

DRAWING A20

Building elevations

Use the north and south elevations to check the stepped eastern and main roof volumes. Use the east elevation to check the length and street-facing form.

Open source pageShare this drawing

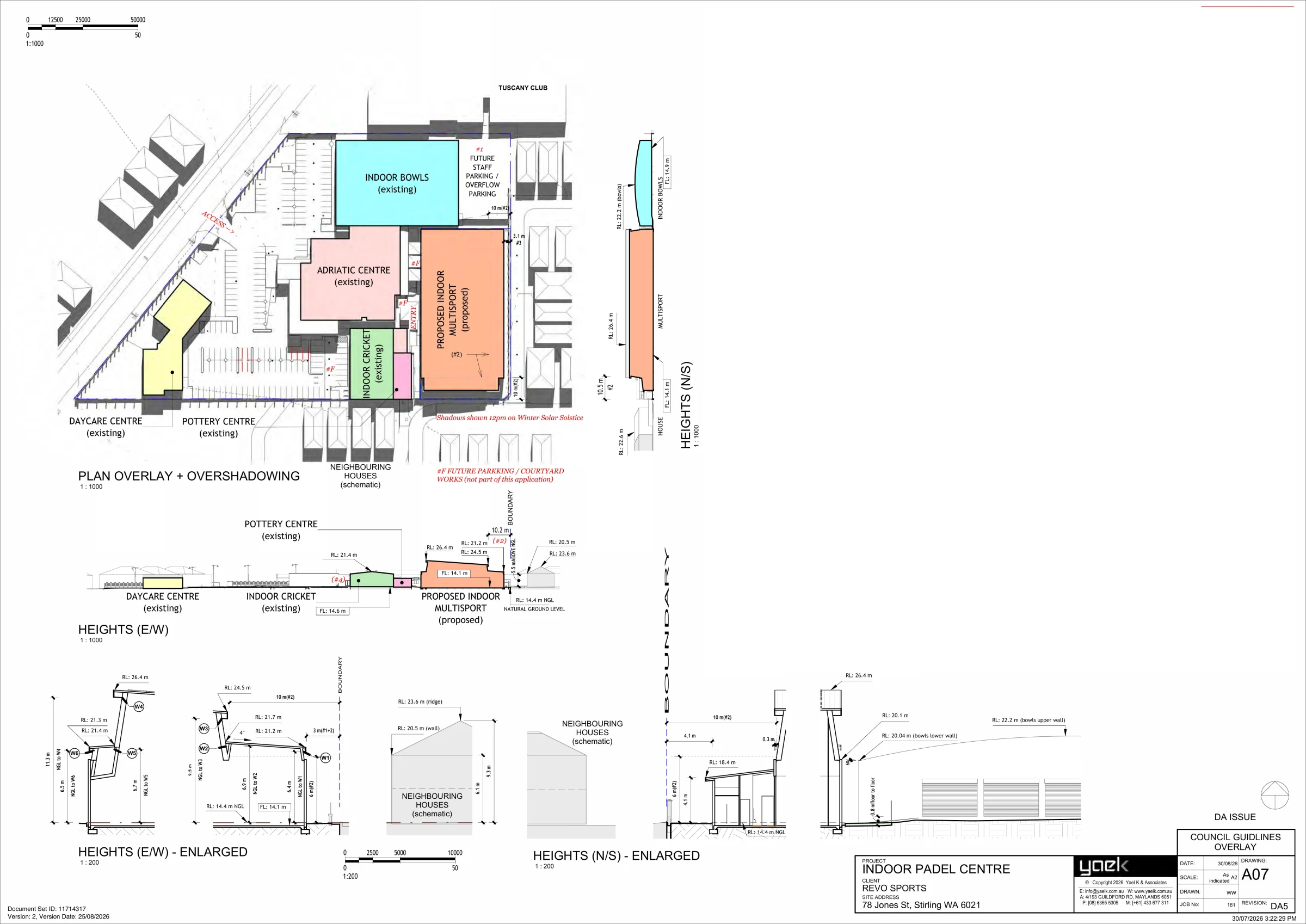

DRAWING A07

Height and site overlay

Use the plan to check the building position and eastern setback. Use the enlarged height diagrams to compare the building with neighbouring houses.

Open source pageShare this drawing
